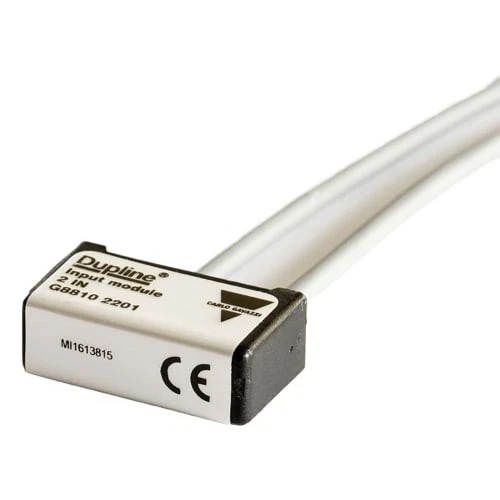

Carlo Gavazzi G88102201 Dupline® 2-Channel Input Module

Overview

The Carlo Gavazzi G88102201 is a compact 2-channel Dupline® input module designed for distributed building and industrial automation applications. As part of the renowned Carlo Gavazzi Dupline Fieldbus system, the G88102201 provides reliable digital signal transmission from push buttons, switches, and dry-contact devices to the Dupline network.

Its miniature housing allows installation inside junction boxes or behind conventional wall switches, making it an excellent choice for both new installations and retrofit projects. Powered directly from the Dupline bus, the module eliminates the need for an external power supply, reducing installation costs and simplifying wiring. The built-in pulse extension function ensures that even short input signals are accurately detected and transmitted across the fieldbus network.

Key Features

•
  Original Carlo Gavazzi Dupline® Fieldbus module

•
  Model: G88102201
•
  2-channel digital input module

•
  Compact housing for concealed installation

•
  Bus-powered operation with no additional power supply required

•
  Built-in pulse extension for reliable detection of short signals

•
  Supports push buttons and dry-contact switches

•
  Fast and reliable Dupline communication

•
  Address programmable using GAP1605 programming unit

•
  High resistance to industrial electrical noise

•
  IP65 protection for demanding environments

•
  Wide operating temperature range

•
  Easy installation and low maintenance


Technical Specifications

Specifications are based on the official Carlo Gavazzi product documentation.

Product Advantages

Compact Installation

The ultra-small housing allows installation inside electrical junction boxes or directly behind conventional switches, making it ideal for space-limited applications.

Reliable Signal Detection

Integrated pulse prolongation technology guarantees reliable transmission of short switching signals, reducing the possibility of missed events.

Bus-Powered Design

The module receives power directly from the Dupline network, eliminating additional power supplies and reducing wiring complexity.

Long-Term Reliability

Designed for industrial environments, the G88102201 offers stable communication, excellent EMC performance, and dependable long-term operation.

Easy System Expansion

As a standard Dupline I/O device, the module integrates seamlessly into existing Dupline installations without major system modifications.

Typical Applications

The Carlo Gavazzi G88102201 is widely used in numerous automation systems, including:

•
  Building automation

•
  Smart building control

•
  Lighting control systems

•
  HVAC automation

•
  Industrial machine monitoring

•
  Distributed I/O systems

•
  Energy management systems

•
  Factory automation

•
  Conveyor control

•
  Access control systems

•
  Switch and push-button signal acquisition


Why Choose the Carlo Gavazzi G88102201?

The G88102201 combines compact size, dependable communication, and straightforward installation, making it an ideal solution for modern automation projects. Its bus-powered architecture minimizes installation costs while improving overall system reliability. Whether upgrading an existing Dupline installation or designing a new distributed control system, this module delivers consistent performance with minimal maintenance.

The module is fully compatible with Carlo Gavazzi Dupline® fieldbus architecture and supports efficient communication between field devices and centralized automation controllers. Official documentation identifies it as a compact 2-channel Dupline input module intended for concealed mounting and integration into Dupline building automation systems.

Industries Served

•
  Manufacturing

•
  Building Automation

•
  Commercial Buildings

•
  Infrastructure

•
  Water & Wastewater

•
  Energy Management

•
  Process Automation

•
  Transportation

•
  Utilities

•
  Intelligent Building Systems
