1. System Topology and Suffix Code Architecture

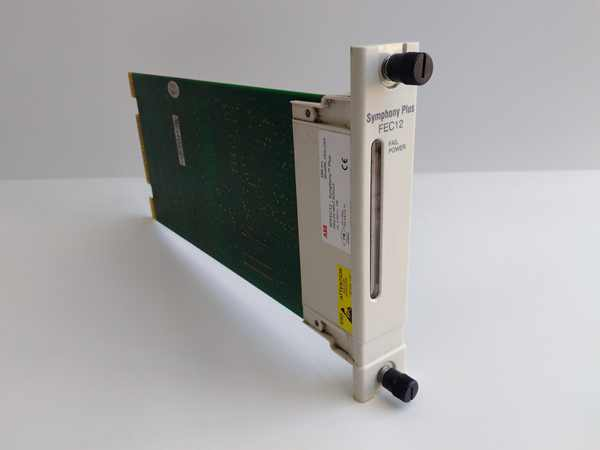

In continuous asset intensive process industries such as chemical manufacturing oil and gas refining offshore drilling thermal power generation and municipal water treatment plants maintaining absolute measurement integrity across all process loops is a fundamental necessity. The ABB SPFEC12 is a high performance high resolution analog input conditioning module engineered specifically for the ABB Symphony Plus and Harmony distributed control system DCS architectures.

This advanced instrumentation module serves as the primary data acquisition and signal translation gateway for critical field instruments including temperature sensors pressure transmitters differential flow meters liquid level gauges and analytical transmitters. Developed to process complex analog signal variations under severe factory conditions the SPFEC12 acts as an essential bridge between localized physical process variables and high level controller logic computations. By upgrading aging legacy data acquisition blocks or replacing degraded input hardware with the authentic SPFEC12 module plant managers protect their operations against unexpected loop lag data dropouts measurement drift and dangerous signal distortion across the industrial automation highway.

2. Advanced Micro-Electrical Engineering and Analog Signal Filtering Physics

The long term operational accuracy and field reliability of the ABB SPFEC12 relies on its specialized internal micro electrical topology and robust component level engineering designed to eliminate industrial ambient noise:

• High Resolution Analog to Digital Conversion: The module incorporates multi channel high resolution analog to digital converters ADC. This allows the SPFEC12 to capture minute fractional changes in field voltage or current loops translating raw physical metrics into stable highly precise digital data packages that the central processing unit can immediately execute.
• Galvanic and Optoelectronic Channel Isolation: To safeguard the delicate inner processing architecture against catastrophic field faults the SPFEC12 features comprehensive galvanic isolation. This protective boundary prevents high voltage spikes transient ground loops lightning induction surges and cross channel electrical cross talk from propagating backward into the primary DCS backplane chassis.
• Advanced Low Pass Active Filtering Technology: Industrial process floors are flooded with high frequency electromagnetic interference EMI and radio frequency interference RFI generated by heavy variable frequency drives VFD and high power switchgear. The SPFEC12 implements onboard hardware and software low pass filters that smoothly dampen out high frequency process noise ensuring that only true clean signal frequencies are transmitted to the control strategy.

3. Edge Intelligence Local Telemetry and Diagnostic Reporting

Beyond standard analog to digital signal conversion the ABB SPFEC12 operates as an active smart edge monitoring device providing real time diagnostics and asset health telemetry back to the central engineering workstation via the fieldbus:

• Front Panel LED Diagnostics Status Array: The module faceplate integrates clear high visibility LED arrays representing card power activation active communication states module internal health parameters and localized bad quality channel faults allowing field instrument technicians to perform rapid visual validation during routine maintenance rounds.
• Comprehensive Sensor Integrity Tracking: The SPFEC12 is capable of continuously executing open circuit broken wire detection and out of range input monitoring. If a field wire shears or a thermocouple open circuits the module instantly flags the affected channel quality status as bad routing a precise binary alarm to the operator workstation preventing the control loop from shifting into an unsafe runaway state.

4. High Resilience Independent MRO Supply Chain Channels

When managing emergency industrial shutdowns planned plant turnarounds or routine predictive MRO cycles component selection accuracy and exact model validation are absolute critical path requirements. Deploying a mismatched input variant can lead to physical module alignment failure input impedance mismatch incorrect loop power configuration or immediate firmware version rejection from the host controller causing extended unexpected downtime to critical production lines.

As a specialized independent B2B supply chain partner for premium global industrial drive automation low voltage distribution components and thermal process instrumentation we maintain a highly responsive network for critical MRO components. We focus on providing factory new genuine ABB SPFEC12 analog input modules with complete quality traceability. Our technical sales group cross checks your site specifications to guarantee a 100 percent plug and play field installation. Contact our technical sales desk today to submit your RFQ confirm real time inventory status and receive a binding competitive B2B wholesale quotation.
