Product Overview

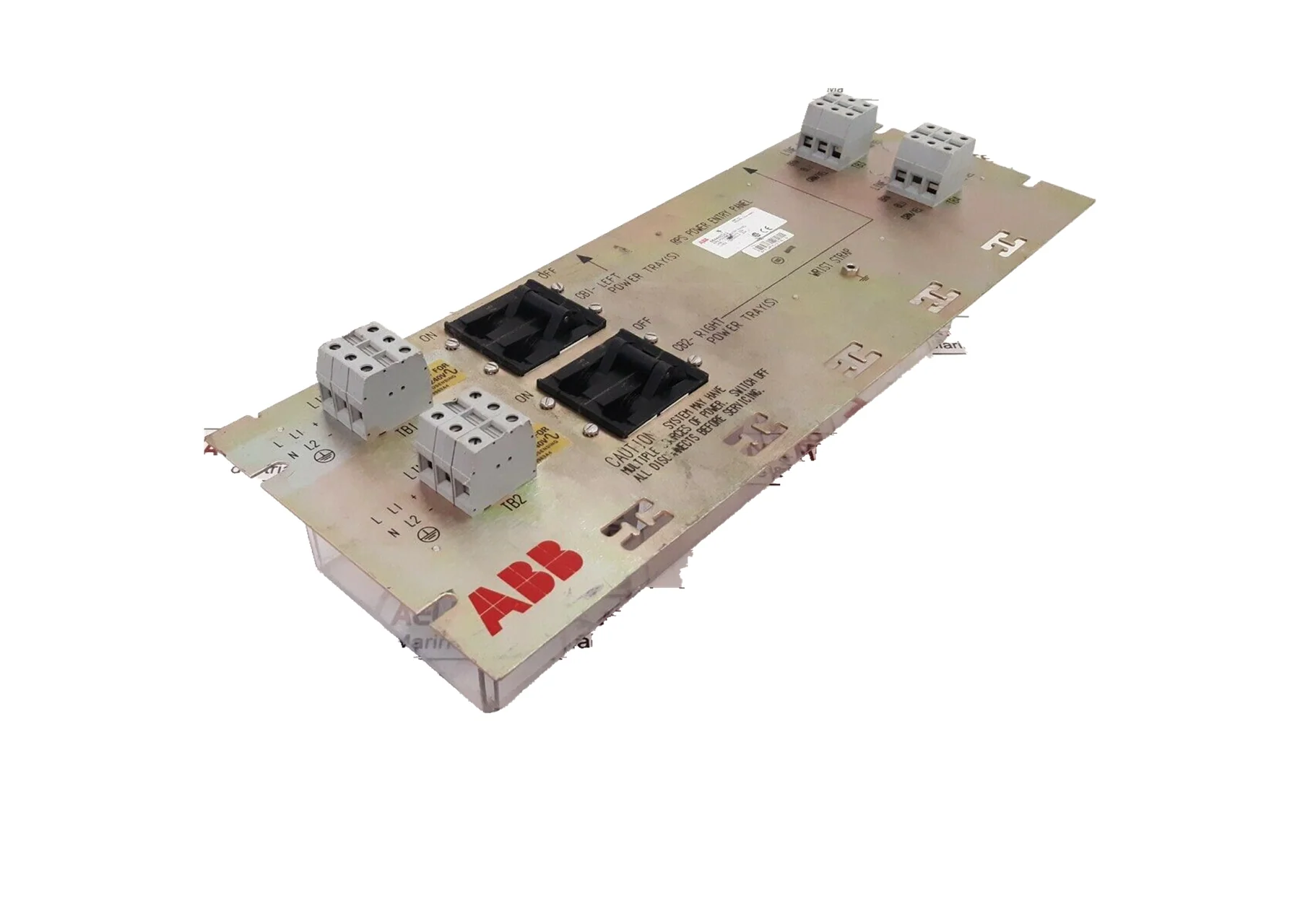

The ABB PHARPSPEP11013 (also referenced as 6644463A2) is a high-performance Power Entry Panel (PEP) engineered as the primary point of AC or DC power distribution for ABB’s Modular Power System III (MPS III) architecture. Designed specifically for Bailey INFI 90, Net 90, and Symphony Harmony distributed control systems (DCS) , this single-chassis panel plays a critical role in routing, protecting, and conditioning incoming electrical power to supply the power supply modules housed in MPS III chassis systems.

As the first-line interface between field power sources and ABB Bailey control infrastructure, the PHARPSPEP11013 ensures that controllers, I/O modules, and peripheral devices receive stable, reliable DC operating power. Equipped with internal fusing, terminal blocks, grounding lugs, and circuit protection mechanisms, this power entry panel safeguards sensitive automation components from overcurrent, short circuits, and electrical hazards. Built for durability, field serviceability, and consistent performance, the PHARPSPEP11013 is well-suited for harsh industrial environments where uptime, redundancy, and electrical safety are essential.

Key Technical Specifications

Key Features

Centralized Power Distribution – The PHARPSPEP11013 functions as the main entry point for incoming power, providing proper voltage transformation, surge suppression, and isolation before distribution to control system modules. It routes and distributes power to MPS III power supply trays, ensuring each module receives clean, regulated DC power.

Comprehensive Circuit Protection – Equipped with integrated circuit breakers, fuses, and terminal blocks, the panel protects the electrical system from overcurrent and short circuits. Built-in overvoltage protection (OVP), overcurrent protection (OCP), short circuit protection (SCP), and over-temperature protection (OTP) safeguard both the power entry panel and connected equipment from electrical faults.

Dual Power Input Support – The panel supports both main and auxiliary 120/240 VAC inputs, enabling redundant power feed configurations for enhanced system availability. This dual-feed capability is critical for mission-critical applications where uninterrupted power delivery is paramount.

Industrial-Grade Construction – Manufactured from high-strength galvanized steel or aluminum with a corrosion-resistant finish, the chassis delivers excellent durability in harsh industrial environments. The rugged construction ensures structural integrity against vibration, dust, and temperature extremes common in power plants, refineries, and manufacturing facilities.

Real-Time Power Monitoring – The panel provides continuous monitoring of voltage and current output, with status indicators and fault alarms for rapid diagnostics. Optional remote monitoring interfaces (RS-485/Modbus) enable centralized power management from the operator station or engineering workstation.

Passive Cooling Design – Engineered for passive convection cooling, the panel eliminates the need for active fan components, reducing maintenance requirements and improving long-term reliability.

Hot-Swappable Module Compatibility – The panel supports N+1 redundant power module configurations and is fully compatible with hot-swappable MPS III power trays, enabling online replacement without system shutdown.

Compact Single-Chassis Form Factor – The single-chassis design offers a compact footprint for space-constrained cabinet installations while providing full power distribution capabilities for smaller to medium-sized DCS deployments.

System Compatibility

The ABB PHARPSPEP11013 is fully compatible with:

• Bailey INFI 90 Distributed Control Systems – Provides power entry and distribution for INFI 90 controller racks, I/O modules, and communication interfaces
• Bailey Net 90 Control Systems – Supports legacy Net 90 installations requiring reliable power distribution
• ABB Symphony Harmony DCS Platforms – Integrates seamlessly with Symphony Harmony systems for modern DCS deployments
• MPS III Modular Power Systems – Serves as the primary power entry point for MPS III chassis systems
• PHARPS Series Power Modules – Compatible with PHARPS32000000, PHARPS32010000, and PHARPS32200000 power supply trays

Applications

The ABB PHARPSPEP11013 power entry panel is deployed across a wide range of industries and applications:

• Power Generation – Thermal, hydro, and nuclear power plants requiring centralized power routing to turbine control systems and I/O chassis
• Oil & Gas – Refineries, offshore platforms, and pipeline facilities requiring reliable energy interface between external AC feeds and DCS power supplies
• Chemical Processing – Continuous-process industries requiring stable power distribution to reactor loop controllers and field instruments
• Pulp & Paper – Safeguards power input to drying sections, batching units, and distributed control panels
• Water & Wastewater Treatment – Municipal infrastructure requiring 24/7 operational reliability for treatment process control
• Steel & Metal Processing – Heavy industrial environments with demanding electrical and thermal conditions
• Manufacturing & Automation – Large-scale automation systems requiring secure and organized power management

Installation and Maintenance

The PHARPSPEP11013 is designed for straightforward rack-mount or cabinet installation. Key installation considerations include:

• Mounting – Standard rack-mount form factor compatible with ABB Bailey and Symphony cabinet cutouts
• Wiring – Terminal block connections (screw clamp or spring-loaded type) for secure and reliable terminations
• Grounding – Dedicated grounding lugs ensure proper system grounding and EMC compliance
• Cooling – Passive convection cooling requires adequate ventilation clearance around the panel

For maintenance, the panel’s modular design and front-access layout simplify routine inspections and cable management. Built-in status indicators provide visual confirmation of input power, output status, and fault conditions, streamlining troubleshooting procedures. The panel supports hot-swappable power module replacement, minimizing system downtime during maintenance activities.

Why Choose the ABB PHARPSPEP11013?

The ABB PHARPSPEP11013 represents decades of ABB engineering expertise in industrial power distribution. As the essential power entry point for MPS III modular power systems, this single-chassis panel delivers the reliability, protection, and flexibility required for continuous, mission-critical DCS operations.

Key advantages include:

• Proven Reliability – Field-tested in thousands of installations across power generation, oil and gas, and manufacturing facilities worldwide
• Comprehensive Protection – Integrated overcurrent, short circuit, overvoltage, and over-temperature protection safeguards sensitive control equipment
• Flexible Configuration – Supports dual 120/240 VAC inputs for redundant power feeds and N+1 redundant power module configurations
• Industrial Durability – Rugged galvanized steel or aluminum construction withstands harsh environmental conditions
• Minimal Downtime – Hot-swappable module compatibility enables online replacement without system interruption
• Global Support – Backed by ABB’s worldwide technical support network and comprehensive spare parts availability

Whether you are upgrading an existing INFI 90 installation, expanding a Symphony Harmony deployment, or procuring spare parts for long-term lifecycle management, the PHARPSPEP11013 offers a proven, cost-effective power entry solution that protects your critical automation assets and ensures uninterrupted system operation.
