Product Overview

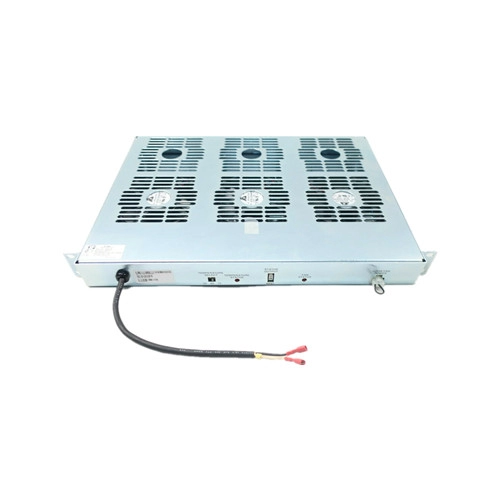

The ABB PHARPSFAN03000 (also referenced as P-HA-RPS-FAN03000) is a high-performance cooling fan assembly engineered specifically for ABB‘s Modular Power System III (MPS III) architecture. As an integral component of ABB Symphony Plus, traditional Harmony, Bailey INFI 90, and Procontrol P13 distributed control systems (DCS), this fan assembly provides critical thermal management for power supply chassis, ensuring reliable heat dissipation from power electronics, rectifiers, transformers, and voltage regulators.

Designed for mission-critical industrial environments, the PHARPSFAN03000 features an advanced DC brushless motor, intelligent speed control with integrated sensors, and hot-swappable architecture that enables replacement without system shutdown. With its robust construction, wide operating temperature range, and comprehensive monitoring capabilities, this cooling fan assembly prevents thermal-induced failures and maintains system availability across power generation, oil and gas, chemical processing, and manufacturing facilities worldwide.

Key Technical Specifications

Key Features

Intelligent System Monitoring and Cooling – The PHARPSFAN03000 integrates advanced monitoring and cooling functionality with fan drive, temperature monitoring, and alarm capabilities. Built-in speed and temperature sensors allow the MPS III system to continuously monitor fan performance and automatically adjust speed based on thermal demand. This intelligent control optimizes energy efficiency while ensuring critical components remain within safe operating temperatures.

Hot-Swappable Architecture – Engineered for minimal downtime, the PHARPSFAN03000 supports tool-free removal and installation. The fan can be replaced during system operation without interrupting DCS functions or requiring power supply shutdown, reducing maintenance downtime to under 5 minutes. This feature is essential for continuous-process industries where unplanned outages carry significant financial penalties.

Advanced DC Brushless Motor – Featuring a high-efficiency DC brushless motor, the fan assembly ensures smooth, reliable operation with extended service life. The brushless design eliminates brush wear, reduces maintenance requirements, and delivers consistent performance across a wide range of operating conditions.

Industrial-Grade Construction – Manufactured from premium stainless steel and aluminum alloy with six cooling blades, the PHARPSFAN03000 offers exceptional durability in harsh industrial environments. Its vibration-resistant mounting system isolates fan vibration from sensitive power supply electronics while maintaining secure mechanical retention during shipping and operation.

Wide Operating Temperature Range – With an operating range of –20°C to +60°C and storage capability from –40°C to +85°C, the fan assembly delivers consistent performance across diverse industrial settings—from freezing outdoor installations to high-temperature processing facilities.

Real-Time RPM Monitoring – Built-in tachometer feedback provides real-time RPM data to power supply diagnostics, enabling predictive maintenance alerts before complete fan failure occurs. This early warning capability allows maintenance teams to schedule replacement during planned outages, preventing unexpected system downtime.

EMC-Compliant Design – Shielded motor construction and filtered power connections prevent electromagnetic interference with adjacent DCS modules and communication circuits, ensuring signal integrity in noise-sensitive control environments.

PWM Speed Control Compatibility – The fan supports PWM speed control methods, allowing precise airflow adjustment based on system cooling requirements. This capability enhances overall system performance while reducing energy waste.

System Compatibility

The ABB PHARPSFAN03000 is fully compatible with:

• ABB MPS III Power Supply Chassis (PHARPSCH100000 and related models)
• Bailey INFI 90 Distributed Control Systems – Provides forced-air cooling for MPS III power supplies energizing controller processors, I/O modules, and communication interfaces
• Symphony Plus DCS Platforms – Maintains optimal operating temperatures in power distribution chassis supporting modern DCS deployments
• Procontrol P13 Platforms – Ensures thermal stability in power supply assemblies deployed in pulp and paper, mining, and metals processing applications
• Harmony and INFI 90 Legacy Systems – Ideal for long-term spare parts support in existing installations

Applications

The ABB PHARPSFAN03000 cooling fan assembly is deployed across a wide range of industries and applications:

• Power Generation – Thermal, hydro, and nuclear power plants requiring high-availability cooling for DCS power supplies
• Oil and Gas – Refineries, offshore platforms, and pipeline facilities with demanding environmental conditions
• Chemical Processing – Continuous-process industries where thermal management is critical for system reliability
• Manufacturing – Heavy industrial automation, automotive assembly, and metal processing facilities
• Data Centers and Telecommunications – Critical infrastructure requiring reliable cooling for control systems
• Pulp and Paper – Harsh environments with high dust and temperature variations
• Mining and Metals Processing – Demanding applications with extreme operating conditions

Installation and Maintenance

The PHARPSFAN03000 is designed for straightforward installation within MPS III power supply chassis. Its compact form factor (55 mm × 170 mm × 450 mm) allows seamless integration into space-constrained control cabinets. The tool-free mounting system enables rapid installation and replacement without specialized tools.

For maintenance, the hot-swappable design allows fan replacement while the system remains operational. The tachometer feedback provides early warning of performance degradation, enabling predictive maintenance strategies that minimize unplanned downtime. With an MTBF exceeding 50,000 hours and industrial ball bearings designed for extended lubrication intervals, the PHARPSFAN03000 significantly exceeds the service life of standard sleeve-bearing designs.

Why Choose the ABB PHARPSFAN03000?

The ABB PHARPSFAN03000 represents ABB’s commitment to reliability and innovation in industrial thermal management. As a factory-engineered component of the MPS III ecosystem, this cooling fan assembly delivers the performance, durability, and intelligent monitoring required for mission-critical DCS applications.

Key advantages include:

• Proven Reliability – Field-tested in thousands of installations across power generation, oil and gas, and manufacturing facilities worldwide
• Minimal Downtime – Hot-swappable design enables replacement without system shutdown, reducing maintenance impact on production
• Intelligent Operation – Integrated sensors and speed control optimize cooling performance while minimizing energy consumption
• Long Service Life – Industrial ball bearings and brushless motor technology deliver >50,000 hours MTBF
• Global Support – Backed by ABB’s worldwide technical support network and comprehensive spare parts availability
• Comprehensive Compliance – Certified to UL, CE, and ISO 9001 standards for safety and quality

Whether you are upgrading an existing INFI 90 installation, expanding a Symphony Plus deployment, or procuring spare parts for long-term lifecycle management, the PHARPSFAN03000 offers a proven, cost-effective cooling solution that protects your critical automation assets from thermal damage and ensures uninterrupted system operation.
